Web Hosting

Following my previous exercise to expose many web apps behind a single domain with Kind and with K3s, I wanted to try the alternative scenario where each web app is exposed on its own domain, and ingress rules are defined for each workload.

graph LR
    client1["HTTP&nbsp;https:&sol;&sol;**orange**&period;neoteroi&period;xyz"] --> orange_ingress["Orange Ingress"]
    client2["HTTP&nbsp;https:&sol;&sol;**teal**&period;neoteroi&period;xyz"] --> teal_ingress["Teal Ingress"]

    subgraph "Ingress Rules"
        direction TB
        orange_ingress
        teal_ingress
    end

    subgraph "Servers"
        A["Orange Web App"]
        B["Teal Web App"]
    end

    orange_ingress -->|&nbsp;/*&nbsp;| A
    teal_ingress -->|&nbsp;/*&nbsp;| B

The single-domain, path-based routing scenario works well in setups involving central API Gateways or HTTP Proxies used to expose multiple web APIs or applications. In such cases, I would use ExternalName services to organize the common ingress rules in a dedicated namespace, while placing each application in its own separate namespace.

The multi-domain scenario is more common when hosting public websites or applications that need to be accessed directly by users. Each application can have its own domain name, allowing users to access them without going through a central gateway or proxy. In this case, there is no need to use ExternalName services and centralized ingress rules —teams only need to agree on domain names to avoid conflicts. Ingress rules can be defined within each application's namespace.

Example¶

The folder ./examples/08-k3s-multi-domain contains a working example of the multi-domain ingress setup, that works well on a default K3s installation.

To test locally, clone the repository and follow the instructions below.

Requirements¶

Since we are testing locally, set this in your hosts file:

127.0.0.1  orange.neoteroi.xyz
127.0.0.1  www.orange.neoteroi.xyz
127.0.0.1  teal.neoteroi.xyz
127.0.0.1  www.teal.neoteroi.xyz

On Linux, this file is located at /etc/hosts. On Windows, this file is located at C:\Windows\System32\drivers\etc\hosts.

Deploy¶

From the root of the repository:

cd examples/08-k3s-multi-domain

cd orange
chmod +x deploy.sh
./deploy.sh

cd ../teal
chmod +x deploy.sh
./deploy.sh

The deploy scripts look like this:

NAMESPACE="orange"

kubectl create namespace $NAMESPACE

cd ssl

# Check if certificate file doesn't exist, generate it
if [ ! -f "$NAMESPACE-neoteroi-xyz-tls.crt" ]; then
  echo "Generating self-signed certificate…"
  chmod +x gen.sh && ./gen.sh
fi

kubectl create secret tls $NAMESPACE-neoteroi-xyz-tls \
  --cert=$NAMESPACE-neoteroi-xyz-tls.crt \
  --key=$NAMESPACE-neoteroi-xyz-tls.key \
  -n $NAMESPACE

cd ../
kubectl apply -f $NAMESPACE.yaml

They create a namespace, generate a self-signed TLS certificate (if it doesn't exist already), create a TLS secret, and apply the deployment and ingress resources.

The deployment files look like this:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: orange-app
  namespace: orange
spec:
  replicas: 1
  selector:
    matchLabels:
      app: orange-app
  template:
    metadata:
      labels:
        app: orange-app
    spec:
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
          effect: "NoSchedule"
      containers:
        - name: orange-app
          image: robertoprevato/mvcdemo:latest
          env:
            - name: BG_COLOR
              value: "#fd7e14"
          ports:
            - containerPort: 80
          readinessProbe:
            httpGet:
              path: /
              port: 80
            initialDelaySeconds: 5
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /
              port: 80
            initialDelaySeconds: 15
            periodSeconds: 20
---
apiVersion: v1
kind: Service
metadata:
  name: orange-app
  namespace: orange
spec:
  ports:
    - port: 80
      targetPort: 80
  selector:
    app: orange-app
  type: ClusterIP
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: orange
  namespace: orange
spec:
  ingressClassName: traefik
  tls:
    - hosts:
        - orange.neoteroi.xyz
        - www.orange.neoteroi.xyz
      secretName: orange-neoteroi-xyz-tls
  rules:
    - host: orange.neoteroi.xyz
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: orange-app
                port:
                  number: 80
    - host: www.orange.neoteroi.xyz
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: orange-app
                port:
                  number: 80

This YAML file defines three Kubernetes resources:

Deployment: Runs a single replica of a web application container with an orange background color (#fd7e14), including readiness and liveness probes
Service: Creates a ClusterIP service that exposes the application internally on port 80
Ingress: Configures routing for two domains (orange.neoteroi.xyz and www.orange.neoteroi.xyz) with TLS support using the Traefik ingress controller

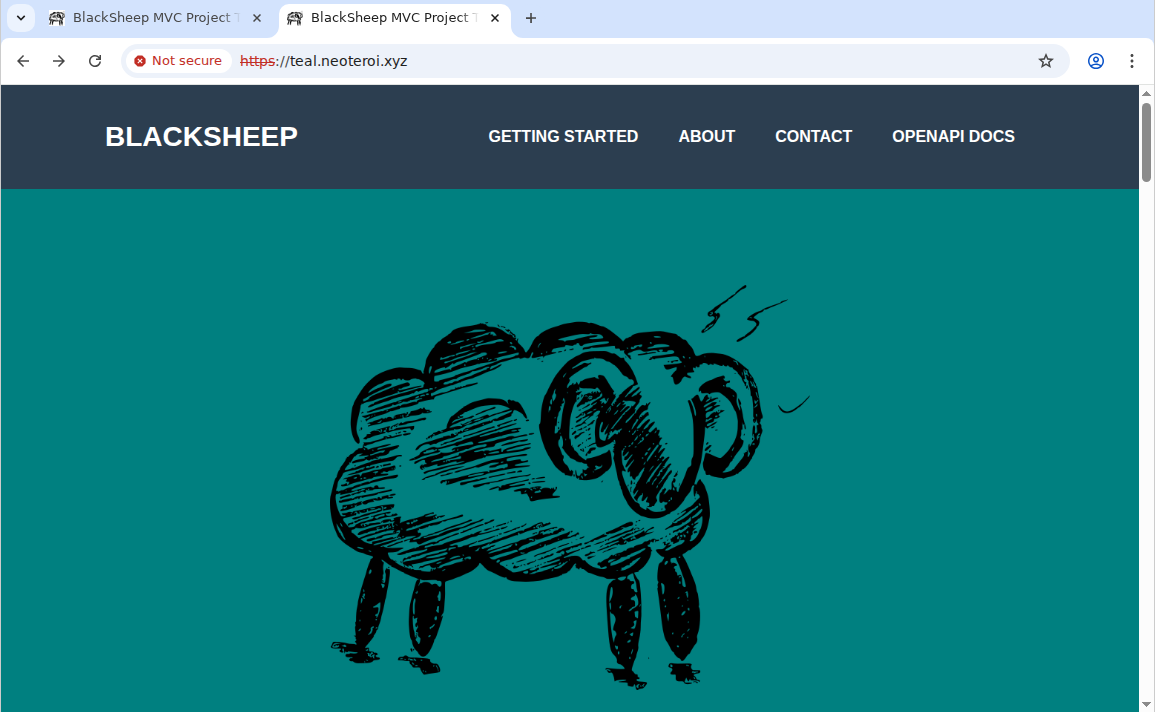

The teal folder contains a similar setup, but with a different background color (#20c997).

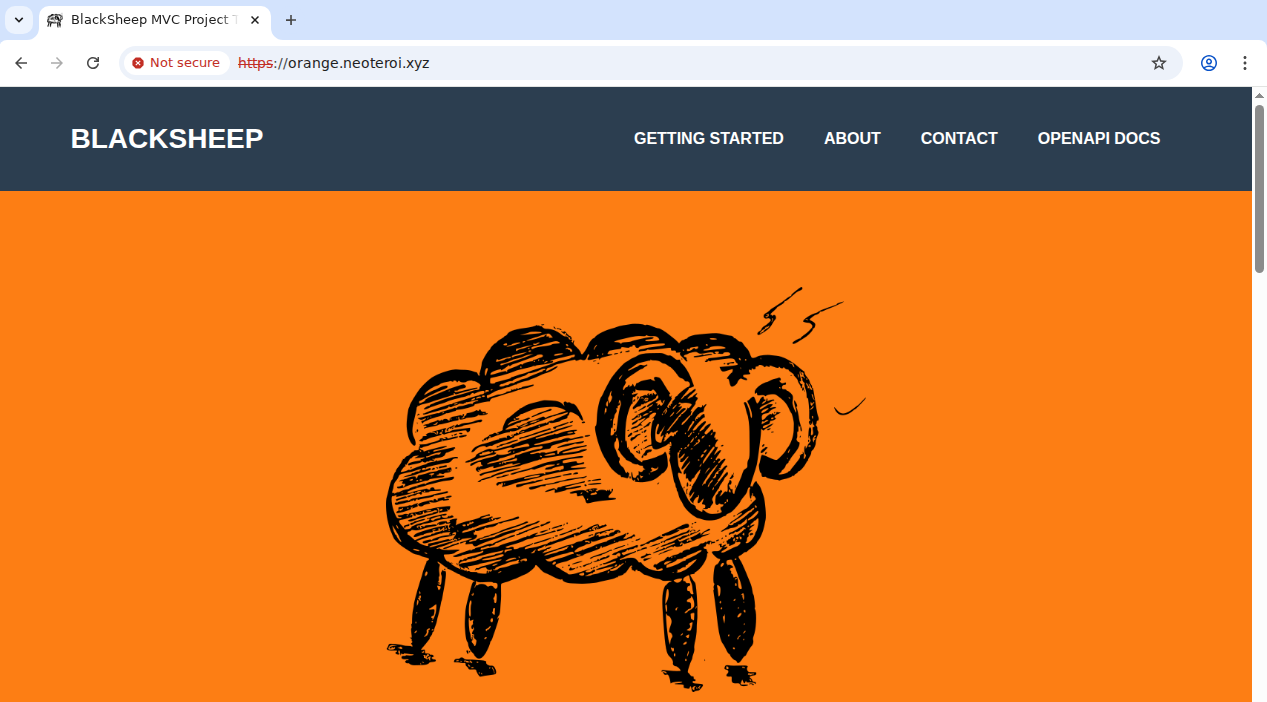

To test the setup, you can use curl or a web browser to access the two domains:

curl -k https://orange.neoteroi.xyz
curl -k https://www.orange.neoteroi.xyz

curl -k https://teal.neoteroi.xyz
curl -k https://www.teal.neoteroi.xyz

The positive side of this approach is that each team can manage their own ingress rules and TLS certificates independently, without needing to coordinate with a central team. Additionally, each application can handle web requests at the root path (/), as not all applications support being served from a subpath (this is generally not an issue for web APIs, while it is usually a problem for web applications that include HTML pages).

Summary¶

The multi-domain ingress approach is easy to set up in K3s and can be an excellent way to host non-production environments on single-node or smaller clusters. Since K3s supports production workloads, this approach can also be used in larger clusters.
