This page describes my first exercise with Kubernetes. I wanted to learn how to host multiple web applications running in the cluster and expose them to the outside world. I also wanted to configure HTTPS using a self-signed certificate, for non-production environments.

The objective was also to host each web application in its own Kubernetes namespace, and expose them to the outside world using rules depending on the URL path and hostname. Using dedicated namespaces allows several teams to work on the same cluster without interfering with each other, and the same team to work on multiple systems on the same cluster.

graph LR
    client1["Client 1"] -->|HTTP GET https://neoteroi.xyz/order/123| proxy["Routing rules"]
    client2["Client 2"] -->|HTTP POST https://neoteroi.xyz/order| proxy["Routing rules"]
    client3["Client 3"] -->|HTTP GET https://neoteroi.xyz/user/123| proxy["Routing rules"]

    subgraph "HTTP Proxy"
        direction TB
        proxy
    end

    subgraph "Servers"
        A["Orders Web API"]
        B["Users Web API"]
        C["Consents Web API"]
    end

    proxy -->| /orders/* | A
    proxy -->| /users/* | B
    proxy -->| /consents/* | C

    %% Note
    classDef note stroke:#000,stroke-width:1px;
    note["Example: api.neoteroi.xyz is the domain of an HTTP&nbsp;Proxy.<br>
    Depending on the first portion of the URL path,<br/>the HTTP Proxy forwards the request to the appropriate server."]:::note
    proxy -.-> note

For this exercise, I wanted to start with a simple scenario like in the following diagram:

graph LR
    subgraph "HTTP Proxy - Ingress"
        direction TB
        proxy
    end

    subgraph "Servers"
        A["Teal Web App"]
        B["Orange Web App"]
    end

    proxy -->|&nbsp;/teal/*&nbsp;| A
    proxy -->|&nbsp;/orange/*&nbsp;| B

For the teal and orange web app, I will use the Docker image I prepared for a project template for my own web framework, BlackSheep, which is available on GitHub and on DockerHub:

The web application and the Docker image are configured to support displaying a different background color by environment variable, and to support being exposed at a specific URL path prefix by environment variable.

For instance, to test the application directly with Docker and fetching the image from DockerHub, you can run the following command:

docker run --name mvcdemo --rm -p 8080:80 \
    -e BG_COLOR='#fd7e14' \
    -e APP_ROUTE_PREFIX='orange' \
    robertoprevato/mvcdemo
The docker command described.
  • Runs a Docker container named mvcdemo from the robertoprevato/mvcdemo image, which will be downloaded from Docker Hub.
  • Removes the container automatically after it stops (--rm).
  • Maps port 8080 on the host to port 80 in the container (-p 8080:80).
  • Sets the environment variable BG_COLOR to #fd7e14 (orange background).
  • Sets the environment variable APP_ROUTE_PREFIX to orange (application will be accessible at /orange).
  • Starts the containerized web application, ready to be accessed at http://localhost:8080/orange.

And then navigate to http://localhost:8080/orange in your web browser. The page should display like in the picture below:

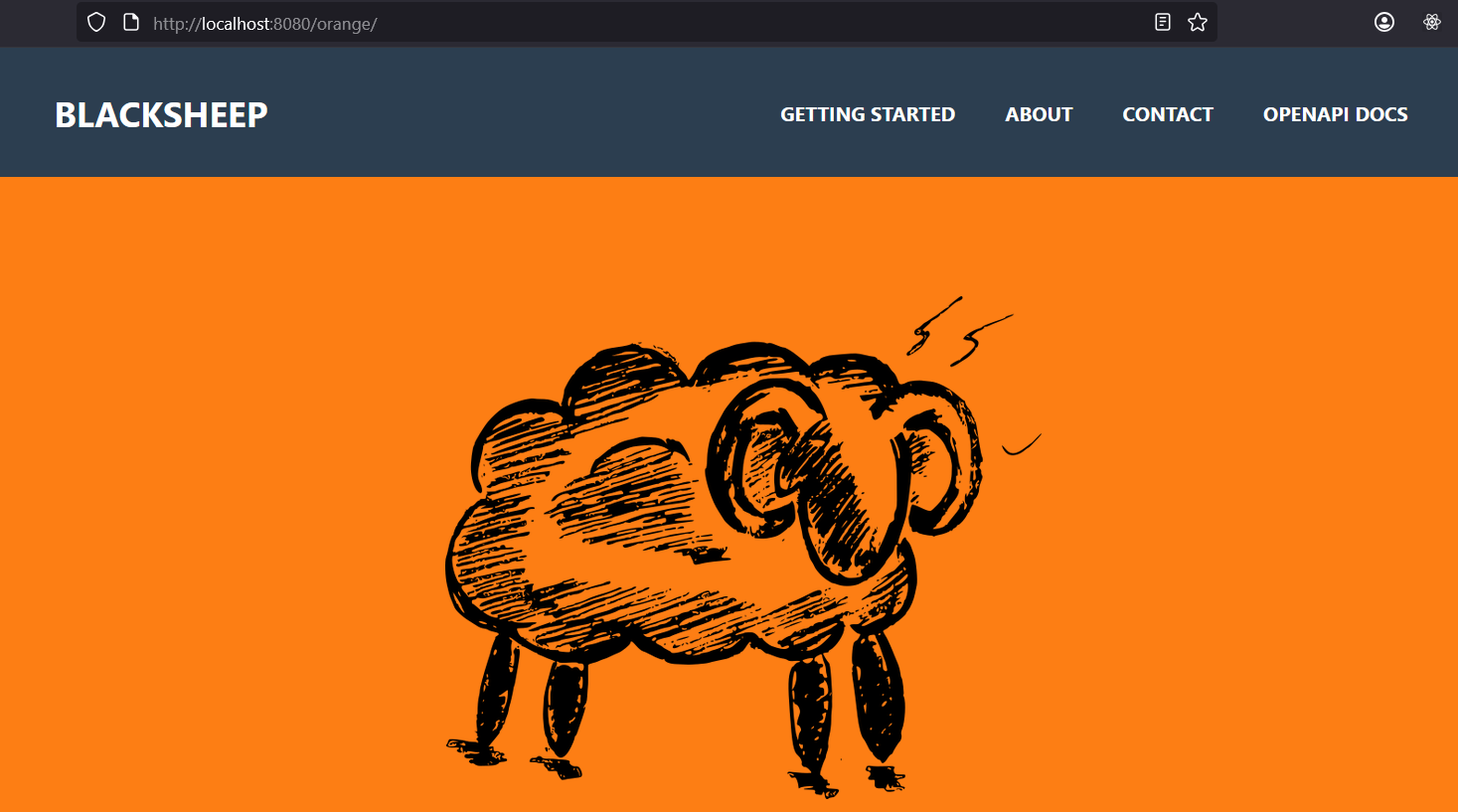

Orange Web App

Now stop the container with:

docker stop mvcdemo

As we want to later host the application in Kubernetes, we don't need to have it running in Docker.

Introduction to Ingress

In Kubernetes, Ingress acts as a gateway that manages external access to services within a cluster, primarily for HTTP and HTTPS traffic.

Kind supports different ways to direct internet traffic to Services inside the cluster, documented here: Ingress.

I tested both options, and I found the second to be more convenient because it is easier to use and is more stable across reboots and Docker daemon restarts.

Creating a cluster with extra config

If you created a cluster previously, delete it with:

kind delete cluster

To create a cluster with extra port mappings, create a configuration file kind.yaml with the following content:

kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
  - role: control-plane
    extraPortMappings:
      - containerPort: 80
        hostPort: 80
        protocol: TCP
      - containerPort: 443
        hostPort: 443
        protocol: TCP

And then create the cluster with:

kind create cluster --config kind.yaml

This configuration will create a single-node cluster with the control plane node, and it will forward ports 80 and 443 from the host to the container.

Although this is a single-node cluster, it is sufficient for testing purposes, and it works reliably across system reboots and Docker daemon restarts.

Before going deeper into Kubernetes, I wanted to create a self-signed certificate to handle HTTPS traffic. The following paragraph describes how to create a self-signed SSL certificate for local development and use it in Kubernetes.

Create a self-signed SSL certificate for local development

For my exercises, I decided to use the domain neoteroi.xyz for the web applications I will host in the cluster. Change the name to whatever you like, while following my notes below.

To create a self-signed SSL certificate for local development, do the following:

Create a config file for Subject Alternative Names (SAN). Create a file named san.cnf with the following content:

[req]
default_bits = 2048
prompt = no
default_md = sha256
distinguished_name = dn
req_extensions = req_ext

[dn]
CN = neoteroi.xyz

[req_ext]
subjectAltName = @alt_names

[alt_names]
DNS.1 = neoteroi.xyz
DNS.2 = www.neoteroi.xyz

Generate the self-signed certificate and private key, using openssl.

openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout neoteroi-xyz-tls.key \
  -out neoteroi-xyz-tls.crt \
  -config san.cnf

This command will generate a private key (neoteroi-xyz-tls.key) and a self-signed certificate (neoteroi-xyz-tls.crt) valid for 365 days.

Later we will create a Kubernetes secret to store the certificate and key, and configure the ingress to use the secret for TLS.

Configuring Ingress with NGINX and Kind

To configure an ingress controller with NGINX:

  1. Follow the instructions here https://kind.sigs.k8s.io/docs/user/ingress/
  2. Create an ingress controller with:
kubectl apply -f https://kind.sigs.k8s.io/examples/ingress/deploy-ingress-nginx.yaml
  1. Make sure it starts, running the command below.
kubectl wait --namespace ingress-nginx \
  --for=condition=ready pod \
  --selector=app.kubernetes.io/component=controller \
  --timeout=90s

If the command above times out, you can check the status of the pods in the ingress-nginx namespace with:

kubectl get pods -n ingress-nginx

kubectl describe pod <name-of-pod> -n ingress-nginx

If your internet connection is slow, it may take a while to download the NGINX controller image.

Creating the demo web applications

Clone the repository to obtain the example files for 01-web-hosting. CD with Bash to the examples/01-web-hosting directory, then run the following commands to create two namespaces (orange and teal) and run two Kubernetes deployments in them:

kubectl create namespace orange

kubectl apply -n orange -f orange.yaml

kubectl create namespace teal

kubectl apply -n teal -f teal.yaml

For reference, here is the content of orange.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: orange-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: orange-app
  template:
    metadata:
      labels:
        app: orange-app
    spec:
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
          effect: "NoSchedule"
      containers:
        - name: orange-app
          image: robertoprevato/mvcdemo:latest
          env:
            - name: BG_COLOR
              value: "#fd7e14"
            - name: APP_ROUTE_PREFIX
              value: orange
          ports:
            - containerPort: 80
          readinessProbe:
            httpGet:
              path: /orange/
              port: 80
            initialDelaySeconds: 5
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /orange/
              port: 80
            initialDelaySeconds: 15
            periodSeconds: 20
---
apiVersion: v1
kind: Service
metadata:
  name: orange-app
spec:
  ports:
    - port: 80
      targetPort: 80
  selector:
    app: orange-app
  type: ClusterIP
---

This YAML configuration defines two Kubernetes resources for the orange web application:

  • Deployment: Creates a single replica of the orange-app container using the robertoprevato/mvcdemo:latest image. The deployment sets environment variables to configure the background color and route prefix, exposes port 80, and includes readiness and liveness probes to monitor the application's health.
  • Service: Exposes the deployed pod internally within the cluster as a ClusterIP service on port 80, allowing other resources in the cluster to communicate with the orange web application.

Configuring Ingress rules

After following the instructions above, configure ingress rules using the following commands:

  • Create a namespace for common ingress resources.
  • Create a TLS secret with the self-signed certificate and key.
  • Apply the common ingress configuration, to route traffic to the backend services in their own namespace.
kubectl create namespace common-ingress

cd ssl
kubectl create secret tls neoteroi-xyz-tls \
  --cert=neoteroi-xyz-tls.crt \
  --key=neoteroi-xyz-tls.key \
  -n common-ingress

cd ../
kubectl apply -n common-ingress -f common-ingress.yaml

The kubectl create secret {…} command creates a Kubernetes TLS secret named neoteroi-xyz-tls in the common-ingress namespace. It uses the certificate file neoteroi-xyz-tls.crt and the private key file neoteroi-xyz-tls.key. This secret is is later referenced by Ingress resources to enable HTTPS (TLS) for services exposed in the cluster.

common-ingress.yaml is the configuration file that defines the ingress rules and services for the orange and teal web applications, which is shown below:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
# common-ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: common-ingress
  namespace: common-ingress
spec:
  ingressClassName: nginx
  tls:
    - hosts:
        - neoteroi.xyz
        - www.neoteroi.xyz
      secretName: neoteroi-xyz-tls
  rules:
    - host: neoteroi.xyz
      http:
        paths:
          - path: /orange
            pathType: Prefix
            backend:
              service:
                name: orange-app
                port:
                  number: 80
          - path: /teal
            pathType: Prefix
            backend:
              service:
                name: teal-app
                port:
                  number: 80
    - host: www.neoteroi.xyz
      http:
        paths:
          - path: /orange
            pathType: Prefix
            backend:
              service:
                name: orange-app
                port:
                  number: 80
          - path: /teal
            pathType: Prefix
            backend:
              service:
                name: teal-app
                port:
                  number: 80
---
apiVersion: v1
kind: Service
metadata:
  name: orange-app
  namespace: common-ingress
spec:
  type: ExternalName
  externalName: orange-app.orange.svc.cluster.local
  ports:
    - port: 80
      targetPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: teal-app
  namespace: common-ingress
spec:
  type: ExternalName
  externalName: teal-app.teal.svc.cluster.local
  ports:
    - port: 80
      targetPort: 80

This YAML configuration defines three Kubernetes resources:

  • Ingress (common-ingress): Configured in the common-ingress namespace, this resource uses the NGINX ingress controller to route external HTTPS traffic for the domains neoteroi.xyz and www.neoteroi.xyz. It uses a TLS secret for SSL termination. The ingress forwards requests with the /orange and /teal path prefixes to the corresponding backend services.

  • Service (orange-app and teal-app): These are ExternalName services in the common-ingress namespace. Each service points to the actual application service running in its respective namespace (orange or teal). This allows the ingress to route traffic to services in other namespaces by referencing them via their fully qualified domain names within the cluster.

Together, these resources enable secure external access to multiple web applications hosted in different namespaces, using a single ingress point and path-based routing.

Modify your hosts file

To test the applications, you need to modify your hosts file (/etc/hosts on Linux and macOS, or C:\Windows\System32\drivers\etc\hosts on Windows) to map the domains neoteroi.xyz and www.neoteroi.xyz to 127.0.0.1 (localhost). Add the following lines:

127.0.0.1  neoteroi.xyz
127.0.0.1  www.neoteroi.xyz

Note about the hosts file.

We modified the hosts file to point the custom domains to the host (localhost) because I decided to use extra port mappings with Kind. If we used instead the cloud provider load balancer option, we would need to modify the hosts file to point to the External IP of the load balancer, obtained with the command:

kubectl get svc -n ingress-nginx

I am using extra port mappings because it is easier to set up and works reliably across system reboots and Docker daemon restarts.

Testing the applications

Open a web browser and navigate to the following URLs:

  • https://neoteroi.xyz/orange/ - should display the orange web application.
  • https://neoteroi.xyz/teal/ - should display the teal web application.

If you see a warning about the self-signed certificate, you can safely ignore it for local development purposes. The application at https://www.neoteroi.xyz/teal/ should display like in the pictures below:

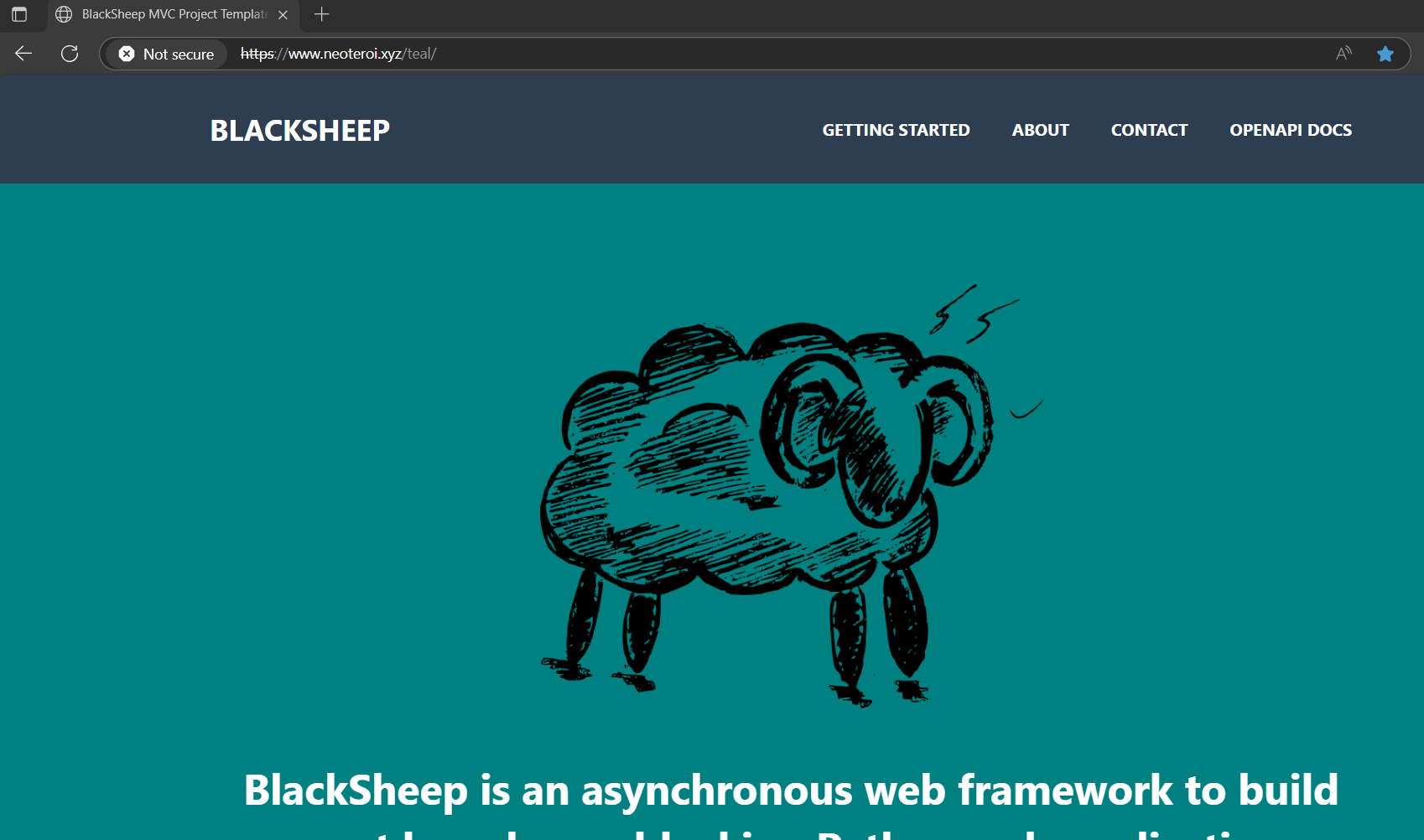

Teal Web App

Using k9s

To visualize the resources in the Kubernetes cluster, run k9s in a terminal.

k9s can be used to inspect the cluster resources, such as namespaces, pods, services, and ingress rules. It provides a terminal-based user interface to navigate and manage these resources easily.

To run a command, click :, then type namespace to list the namespaces. Then use the arrow keys to navigate to a namespace and press Enter to switch to it. You can also use the / key to search for resources by name.

The screenshots below show the list of namespaces and the logs of a container in the orange namespace:

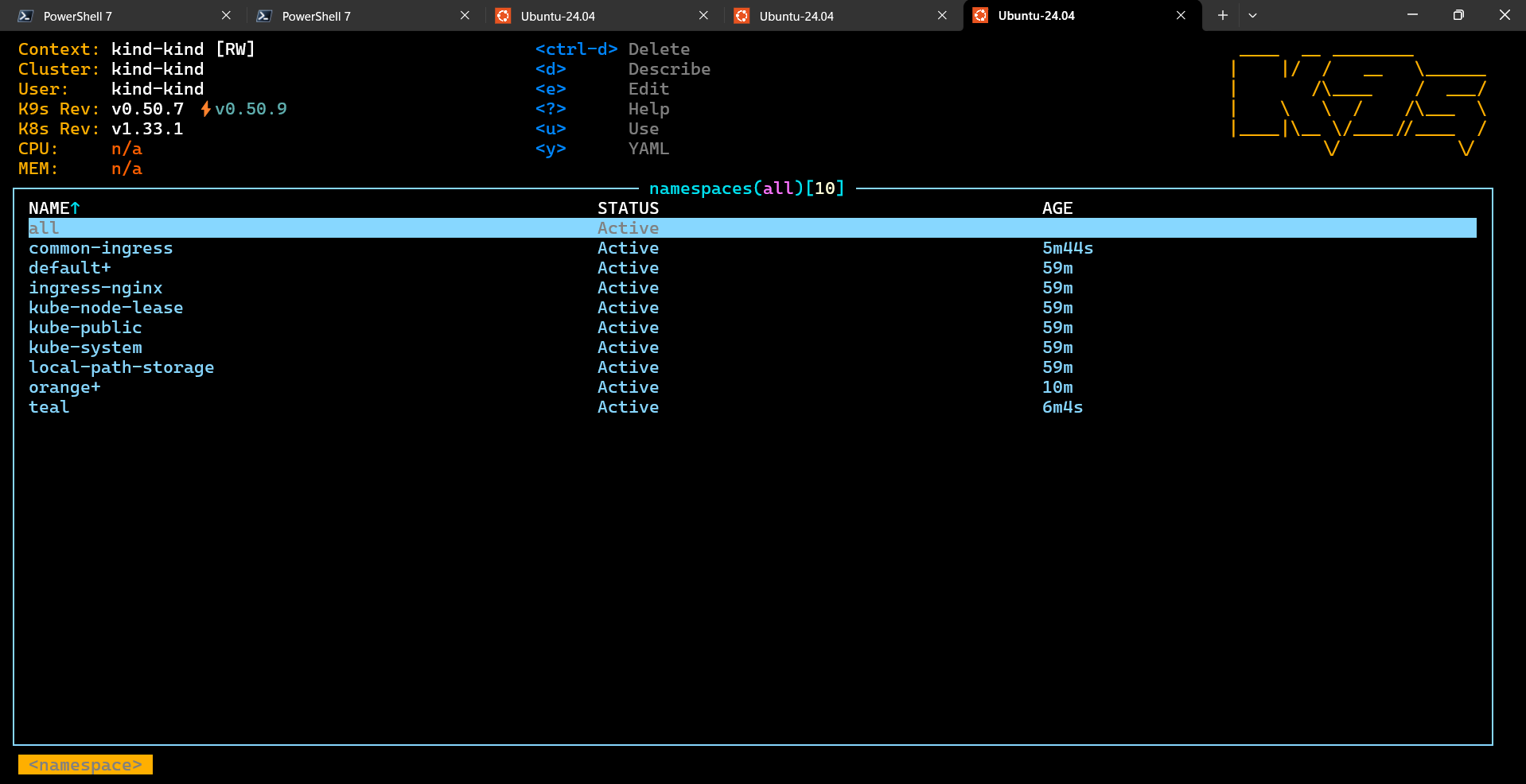

k9s namespaces

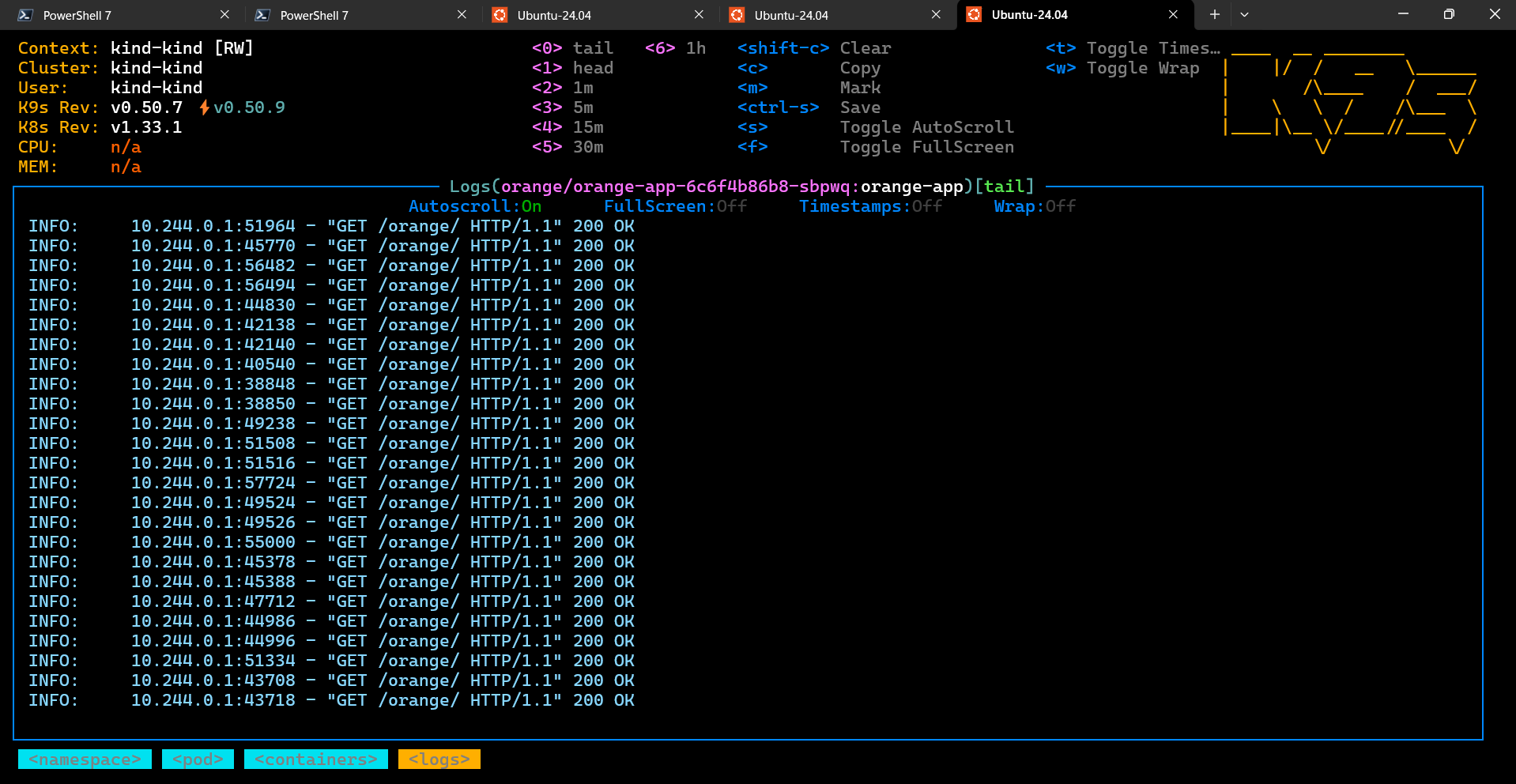

k9s container logs

Summary

This exercise demonstrated how to set up a Kubernetes cluster with Ingress to host multiple web applications, each in its own namespace, and expose them to the outside world using a self-signed SSL certificate.

The cluster was created using Kind with extra port mappings to forward HTTP and HTTPS traffic from the host to the cluster.

Next steps

The next page describes my second exercise with Kind and Kubernetes: how to use volume mounts to persist data on the host running Kubernetes and Kind, used by containers running inside pods of the cluster.
